ESP32 SteaMakers. Control element

In our case we will use an ESP32 Steamakers programmable microcontroller board as the control element for several reasons:

  • ESP32 based which means, processing power, wifi and bluetooth connectivity, etc.
  • Arduino form factor and compatibility with Arduino shields.
  • Easy connection. Male pinout available for the board ports, so connection can be done without breadboard.
  • Built-in sensors: power, temperature and magnetic field.
  • Built-in microSD card reader.
  • Arduinoblocks is fully compatible with it, designed for all its functionalities.
  • Detailed technical documentation.
  • Extensive didactic documentation.
  • Quality construction and manufacturer support.
  • Designed in Spain by teachers for teaching purposes.
  • Several distributors in Spain.

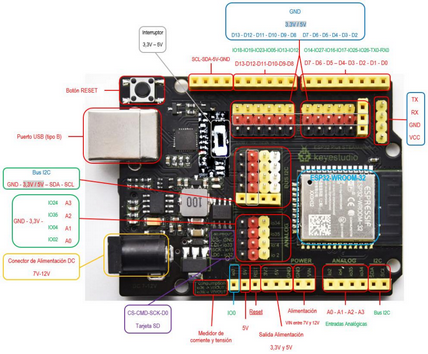

Technical specifications and pinout

The most important features of this board are:

  • Tensilica Xtensa 32-bit LX6 160MHz microcontroller.
  • Wifi 802.11 b/g/n/e/i connectivity.
  • Bluetooth 4.2 connectivity and BLE mode.

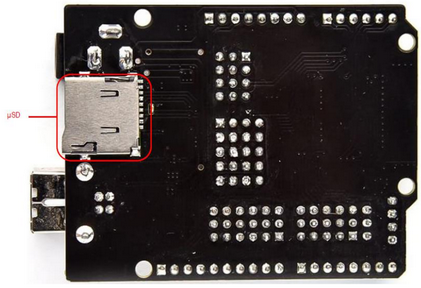

  • µSD card socket.
  • 14 powered digital inputs and outputs.
  • Powered female serial connector.
  • I2C connector to connect up to 5 devices at the same time on the same board.
  • I2C female connector for connection of an OLED display.
  • Reset button.
  • 5V connector.
  • 3.3V connector.

  • Selectable 3.3-5V switch to switch between these two voltages on some power supply pins.
  • Analogue inputs and outputs.
  • Integrated Hall and temperature sensor.
  • Two 8-bit Digital-to-Analog converters (DACs).
  • Sixteen 12-bit Analogue-to-Digital converters (ADC).
  • 16 PWM channels.
  • 2 UART.
  • 2 I2C channels.
  • 4 SPI channels.
  • 448Kb ROM.
  • 520KB SRAM.
  • 8KB+8KB SRAM in RTC.
  • 1kbit eFUSE.
  • 512 bytes Flash Memory (EEPROM).
  • 10 touch sensors.
  • 4 internal 64-bit timers.
